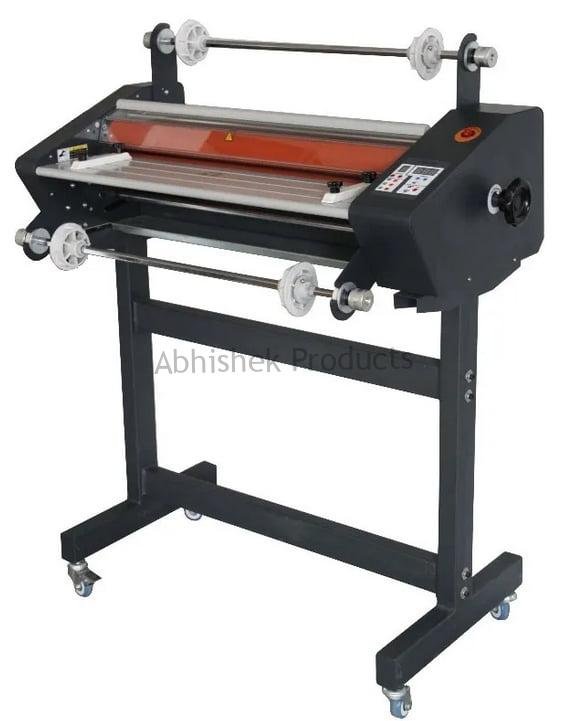

25 Inch Rubber Roll To Roll Thermal Lamination Machine 650mm

FM-650 Hot Roll Laminator, a semi-automatic thermal lamination machine designed for packaging paper and film material. This versatile laminator features adjustable speed and temperature controls, allowing you to achieve precise laminating results. With a maximum laminating width of 650mm and a laminating speed of 0.5-3.2mm/min, it offers efficient and waterproof laminating performance. Experience seamless operation with its digital display, pressure adjustment, and temperature sensing capabilities. Upgrade your laminating process with the FM-650 Hot Roll Laminator for professional-quality results.

Add to wishlist

SKU: 25 Inch Rubber Roll to Roll Machine Category: Thermal Lamination Tags: 25 inch thermal, roll to roll thermal lamination machine, thermal lamination rRoll

Description

The FM-650 SR Thermal Lamination Machine is a high-performance and versatile solution for all your thermal lamination needs. Whether you are working with packaging paper or film material, this semi-automatic lamination machine delivers exceptional results with its advanced features and reliable performance.

Key Features:

Automation Grade: The FM-650 SR operates in a semi-automatic mode, striking the perfect balance between manual control and automated efficiency.
Enhanced Lamination Process: With four rollers and a thermal lamination design, this machine ensures smooth and consistent lamination for a professional finish every time.
Wide Range of Applications: From packaging paper to film material, the FM-650 SR is suitable for various lamination tasks, making it ideal for businesses in diverse industries.
User-Friendly Operation: The touch-button interface and digital display enable easy and intuitive control over laminating speed, temperature, and pressure adjustments.
Flexible Paper Size: With a generous paper size capacity of 650mm, you can laminate a wide range of documents, posters, and other materials with ease.
Efficient Speed: The laminating speed ranges from 0.5 to 3.2mm per minute, ensuring swift completion of projects without compromising on quality.
Adaptable Film Thickness: The FM-650 SR accommodates film thicknesses ranging from 30mic to 175mic, offering versatility for various lamination requirements.
Wide Laminating Width: Featuring a maximum laminating width of 650mm, this machine can handle larger materials, allowing you to laminate more significant projects effortlessly.
Adjustable Laminating Thickness: With the ability to laminate materials up to 5mm thick, the FM-650 SR offers flexibility for a wide range of lamination applications.
Powerful Motor: The DC main motor ensures smooth operation and consistent performance, making it reliable for prolonged and demanding use.
Temperature Control: The manual temperature control system allows you to set the laminating temperature up to 170 degrees, ensuring optimal results for different materials.
Pressure Adjustment: The FM-650 SR provides pressure adjustment capabilities, enabling you to customize the lamination process based on the specific requirements of your materials.
Temperature Sensing: Equipped with a temperature sensing mechanism, the machine ensures precise and accurate temperature control for high-quality laminating outcomes.
Power Supply Options: The machine offers optional power supply variations, including AC 110V, 120V, 220V, or 240V at 50Hz or 60Hz, providing flexibility to suit your specific power requirements.

Additional information

Weight	8.65 kg
Dimensions	55 × 29 × 16 cm
BrandList of Associated Brands, branded products, Use For a brand Products and Services	EXCELAM, JD Office Solution
EMI	Emi Available
Good Side Business ForThis Product is a Good Side Business For The Following	Corporate Office, Customized Gift Shops, Digi Press, Marketing Agencies, Mini Offset Printer, Photo Studio, Photocopier Shop, School ID Card Dealer, Small Digital Press, Stationary Shops, Student Xerox Center, Thesis Binder, Wedding Card Printing
Size	25 Inch

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Shipping & Delivery

Why Go With Us ?

We Deliver To Your City No matter where you are, we are here for you. Book your order and let us know where you want it, and we will deliver it for you.
Hello, ID Cards Office supplies for organizations, schools, and companies we understand your needs and demands with ID cards, badges, binding and other office supplies.

Technical Details

Parameter	Value
Automation Grade	Semi-Automatic
Number Of Rollers	4
Machine Type	Thermal Lamination Machine
Usage/Application	Thermal Lamination
Model Name/Number	650 SR
Paper Size	650mm
Laminating Speed	0.5-3.2mm/min
Film Thickness	30mic-175mic
Max. Laminating Width	650mm
Laminating Thickness	5mm
Machine Capacity	1", 1.5", 3" core
Power Supply Optional	AC 110,120,220,240V/50, 60HZ
Pressure Adjustment	YES
Speed Control	YES
Temperature Control	MANUAL
Display	DIGITAL
Substrate Thickness	5MM
Temperature Range	Up to 170 degrees
Type Of Main Motor	DC
Temperature Sensing	YES
Basic Info
Model NO.	FM-650
Classification	Hot Roll Laminator
Application	Packaging Paper, Film Material
Driven Type	Electric
Membrane Material	Thermal Film
Plastic Film Mulching Modes	Hot Laminating
Performance	Waterproof
Laminating Speed	0-1.6m/Min
Laminating Temperature	0~160o C
Laminating Thickness	0.3~5mm
Model	Wd-FM650
Max. Laminating Width	630mm /25inch
Trademark	WD
Transport Package	Wooden Case
Specification	630MM
Origin	China
HS Code	8472902900
Product Description
FM-650 Hot Roll laminator
CHARACTERISTICS
Hot roll laminator
Adjustable speed and temperature freely
Touch button to operate with safe protector design device
Hot and cold laminating for different needs
Support for option
PARAMETERS
Max. Laminating width	635mm /25.4inch
Laminating Speed	0-1.6m/min
Laminating Thickness	0.3~5mm
Laminating Temperature	0~160º C
Power	AC220(110)±10 50Hz(60Hz) 1.1KW
Net Weight	51KG
Machine Dimension	884440438mm

Note: This content is AI-generated and may have errors.

FAQs

FAQs - 25 Inch Rubber Roll To Roll Thermal Lamination Machine 650mm

Question	Answer
What is the automation grade of the FM-650 SR Thermal Lamination Machine?	The FM-650 SR operates in a semi-automatic mode, providing a balance between manual control and automated efficiency.
What type of materials can the FM-650 SR laminate?	The FM-650 SR is suitable for laminating packaging paper and film material.
How many rollers does the FM-650 SR Thermal Lamination Machine have?	The machine has four rollers to ensure smooth and consistent lamination.
What is the maximum laminating width of the FM-650 SR?	The machine can handle up to 650mm in laminating width.
What is the laminating speed of the FM-650 SR?	The laminating speed ranges from 0.5 to 3.2mm per minute.
Can the FM-650 SR accommodate different film thicknesses?	Yes, it accommodates film thicknesses ranging from 30mic to 175mic.
What is the maximum laminating thickness that the FM-650 SR can handle?	The machine can laminate materials up to 5mm thick.
What power supply options does the FM-650 SR offer?	The machine provides optional power supply variations, including AC 110V, 120V, 220V, or 240V at 50Hz or 60Hz.
Does the FM-650 SR have temperature control features?	Yes, it has a manual temperature control system that allows settings up to 170 degrees.
Is there a temperature sensing mechanism on the FM-650 SR?	Yes, the machine is equipped with a temperature sensing mechanism for accurate temperature control.
Does the FM-650 SR have any pressure adjustment capabilities?	Yes, it provides pressure adjustment capabilities to customize the lamination process according to material requirements.
What type of motor does the FM-650 SR use?	The machine uses a DC main motor for smooth operation and consistent performance.
How user-friendly is the FM-650 SR Thermal Lamination Machine?	The touch-button interface and digital display make it easy to control laminating speed, temperature, and pressure adjustments.
